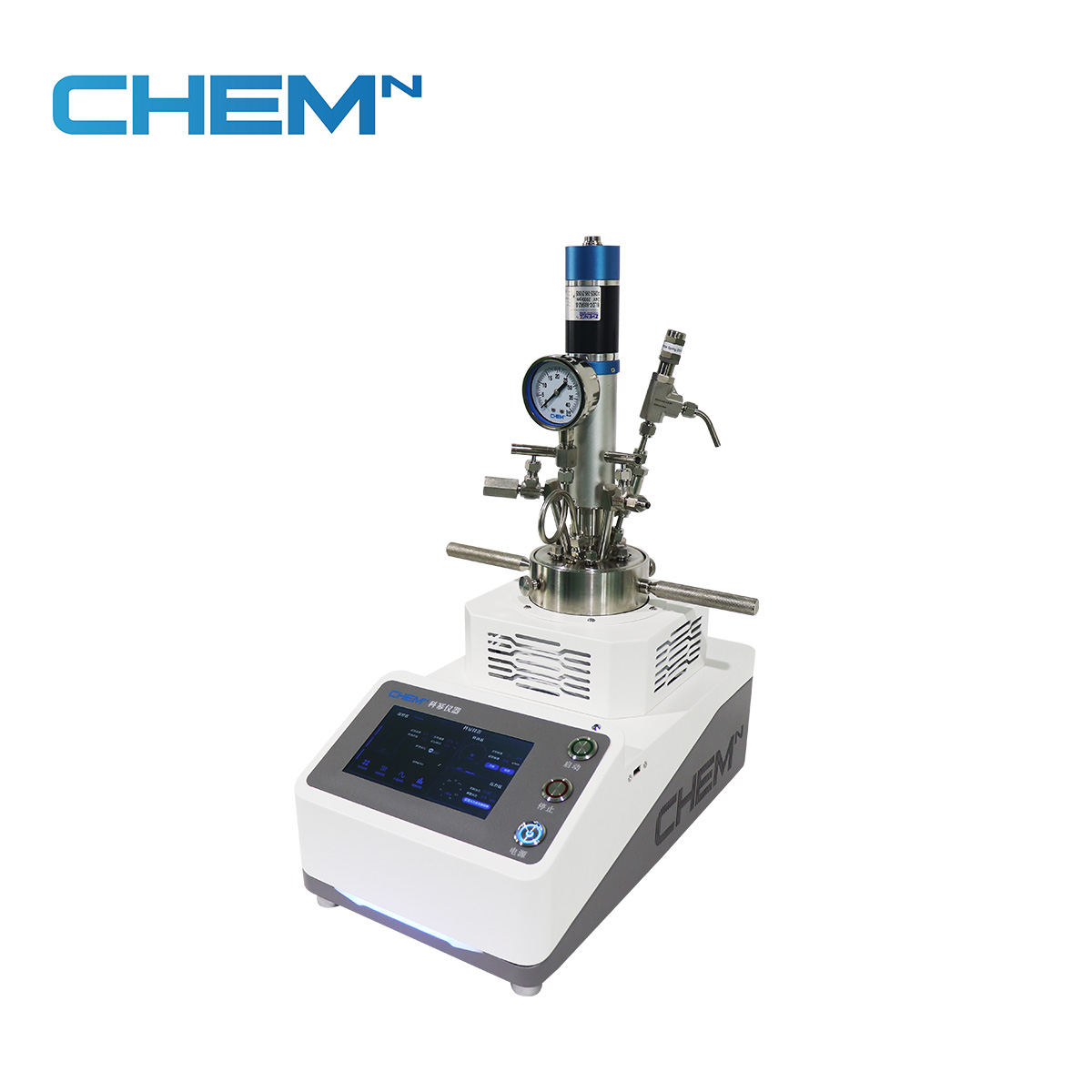

This product integrates the mechanical stirrer, heating furnace and intelligent temperature controller. A 7-inch HD touch
screen is provided to control the temperature and monitor the rotation speed. Equipped with a USB interface, the changes in
temperature, rotation speed and other parameters in the reaction process recorded in real-time can be downloaded with a
USB flash disk.
Design volume: 25 mL, 50 mL, 100 mL, 300 mL, 500 mL
Maximum operating temperature: Standard 550 ℃
Heating mode: Embedded stainless steel heating module
Heating power: 1 kW
Stirring speed: 400-1400 rpm (stepless speed regulation)
Stirring method: High-torque magnetic coupling stirring
Design pressure: Standard 207 bar
Material of reactor: 316 L stainless steel, Hastelloy C-276, etc.(optional)
Universal Micro Reactor Controller:
Over-temperature automatic power-off
7-inch touch screen, displaying the temperature, rotation speed, pressure and operating time USB interface, supporting data export
Power supply configuration: 200 - 240 V/AC, 50 - 60 Hz
Outline dimension: about 250*460*410 mm
Personalized options:
Various alloy materials, stirring forms, sampling and cooling, etc.
optional configurations
Outline dimension MSI25/50/100 mL: 372*400*600 mm
