Labeling speed (pos/min) | 40~150 pieces/min (relate to material and label size) |
| Labeling accuracy (mm) | ±1.0mm (material and label sizes are not counted in) |
| Label size (mm) | (L)20~280mm (H)30~144mm |
| Material size (mm) | φ20~φ100mm (H)40~200mm |
| Roll inside diameter (mm) | φ76mm |
| Roll outside diameter (mm) | Max φ350mm |
| Machine size (mm) | (L)2000*(W)850*(H)1350(mm) |
| Power supply | AC220V 50Hz/60Hz 1500W | Labeling speed (pos/min) | 40~150 pieces/min (relate to material and label size) |
| Labeling accuracy (mm) | ±1.0mm (material and label sizes are not counted in) |
| Label size (mm) | (L)20~280mm (H)30~144mm |
| Material size (mm) | φ20~φ100mm (H)40~200mm |
| Roll inside diameter (mm) | φ76mm |
| Roll outside diameter (mm) | Max φ350mm |
| Machine size (mm) | (L)2000*(W)850*(H)1350(mm) |
| Power supply | AC220V 50Hz/60Hz 1500W | Labeling speed (pos/min) | 40~150 pieces/min (relate to material and label size) |
| Labeling accuracy (mm) | ±1.0mm (material and label sizes are not counted in) |
| Label size (mm) | (L)20~280mm (H)30~144mm |
| Material size (mm) | φ20~φ100mm (H)40~200mm |
| Roll inside diameter (mm) | φ76mm |
| Roll outside diameter (mm) | Max φ350mm |
| Machine size (mm) | (L)2000*(W)850*(H)1350(mm) |
| Power supply | AC220V 50Hz/60Hz 1500W |

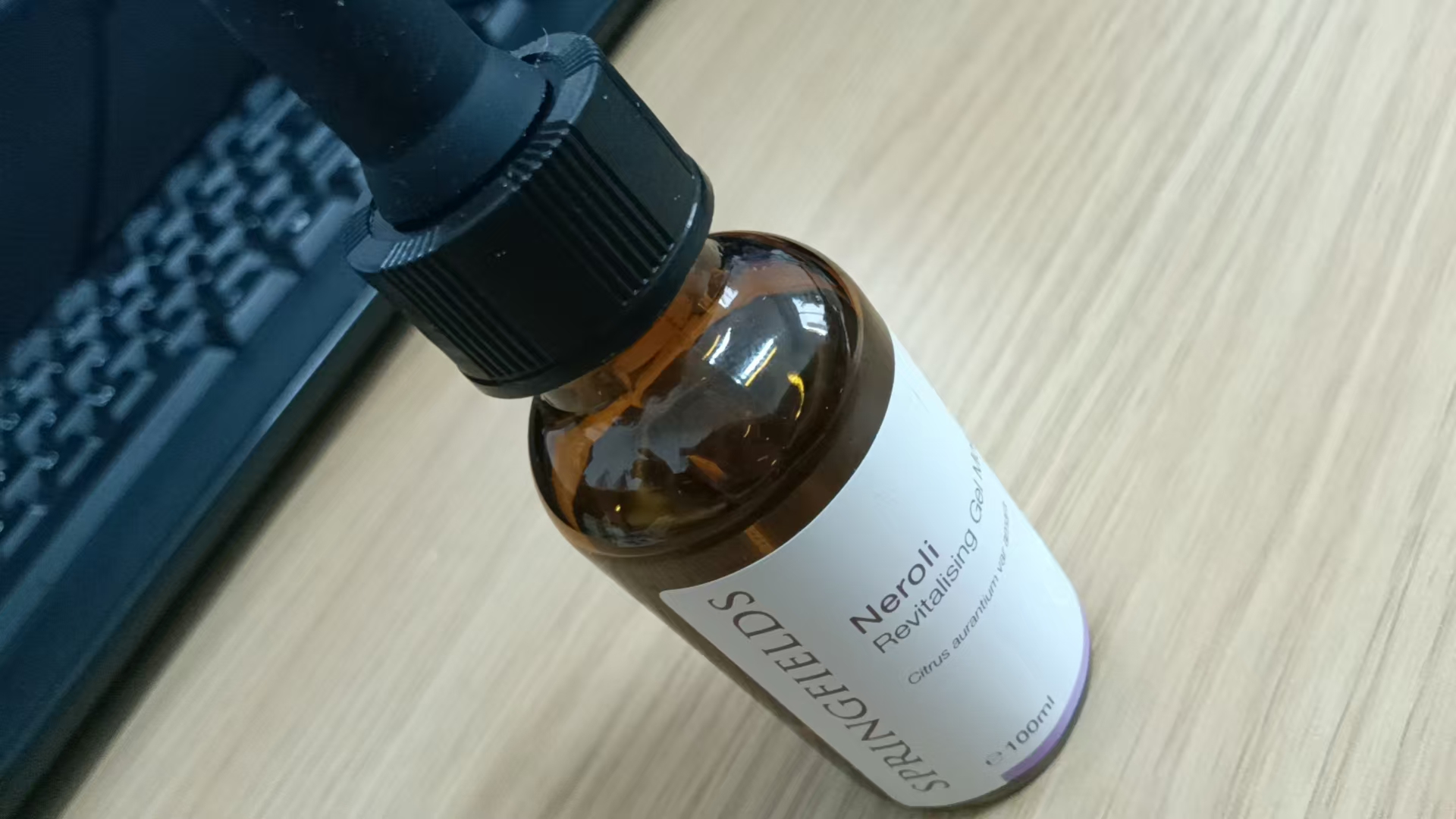

Applicable to label whole curved surfaces or half curved surfaces on rotundities from medicine, food, agrochemical and other industries;
- Using well-known motor drive which ensures a stable and reliable label-feeding speed;
- Advanced touch human-computer interface which is easy and intuitionistic to operate and has complete functions including abundant online help;
- Automatic sensor detection functions including cancelling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels;
- Rotary rolling depression body adopting elastic sponge-covered belt makes the labels more smooth, firm and with no wrinkles which enhances the packaging quality greatly;
- Simple and compact machine construction makes it easy to operate and maintain;
- You can also link the back part with assembly line or receiving platform which is convinient for collecting, tidying and packaging the finished products.
