Category:
Drying Equipment
CAS NO:
/
Standard:
N;

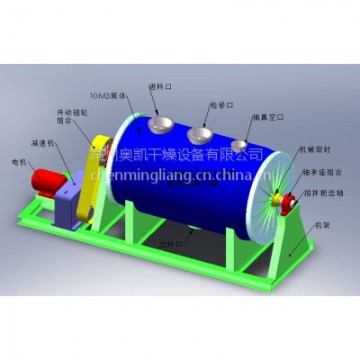

Model: PZG-100/200/500/1000/2000/3000/4000/5000/6000
Loading Coefficient: 0.4-0.6
Material: Stainless Steel, Ti-alloy, Hastelloy etc.
Features:
1. Suitable for heat sensitive materials.
2. Design and manufacturing according to pressure vessel.
3. The initial moisture of materials can be 90%.
4. Final moisture: 1%, or even 0.5%
5. Less steam consumption
6. Volatile gas can be recovered.
Data:
| Model | Volume (L) | Rotating Speed (rpm) | Power (kW) | Design Pressure (MPa) | Weight (Kg) | Vacuum Pump (Recommended) | |
| Jacket | Core | ||||||
| PZG-100 | 100 | 10 | 1.5 | 0.3 | -0.1 | 800 | SK-1.5 |
| PZG-200 | 200 | 10 | 1.5 | 0.3 | -0.1 | 1000 | SK-1.5 |
| PZG-500 | 500 | 10 | 3 | 0.3 | -0.1 | 1500 | SK-3 |
| PZG-1000 | 1000 | 10 | 7.5 | 0.3 | -0.1 | 2000 | SK-6 |
| PZG-2000 | 2000 | 7 | 11 | 0.3 | -0.1 | 2800 | SK-6 |
| PZG-3000 | 3000 | 7 | 15 | 0.3 | -0.1 | 3800 | SK-6 |
| PZG-4000 | 4000 | 7 | 15 | 0.3 | -0.1 | 4500 | SK-12 |
| PZG-5000 | 5000 | 5 | 1805 | 0.3 | -0.1 | 5800 | SK-12 |
| PZG-6000 | 6000 | 5 | 22 | 0.3 | -0.1 | 6500 | SK-12 |
